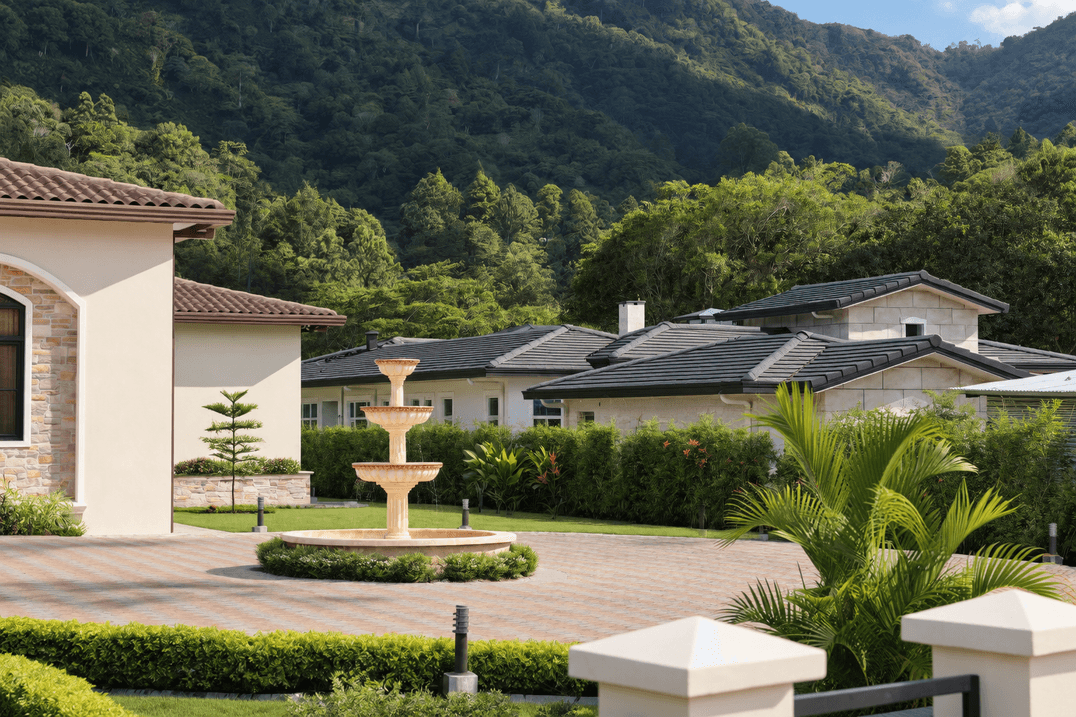

Logica Emotions
A new perspective on roofing
Our collections are inspired by nature, creating unique compositions. Digital printing technology brings each design to life across a variety of textures, and each collection combines multiple tile variations to create a natural, harmonious appearance across the building envelope.
- Contemporary aesthetics for distinctive architectural designs.
- Subtle variations in design and texture within each collection bring depth, movement, and harmony to roofs and façades.
- Exceptional durability backed by a 50-year warranty.
- The first carbon-neutral roof tile certified by AENOR, supported by a product-specific Environmental Product Declaration (EPD) and sustainability documentation from the GBCe Materials Platform.

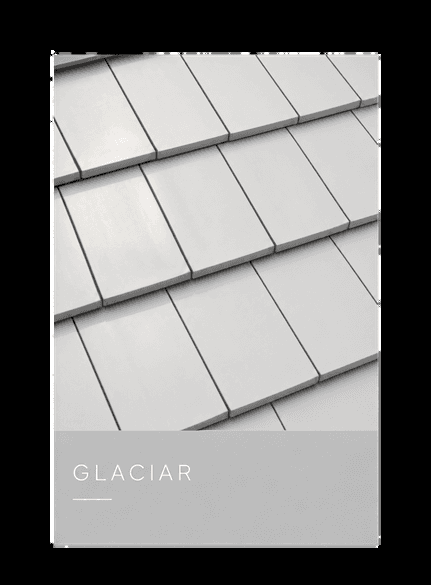

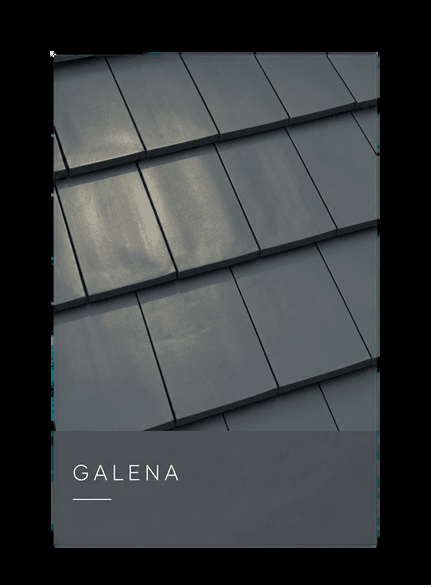

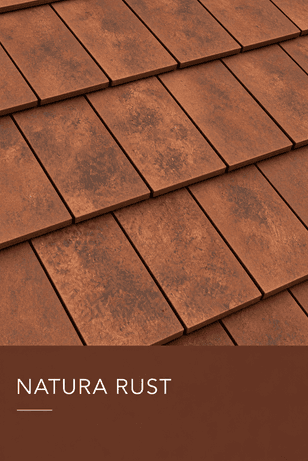

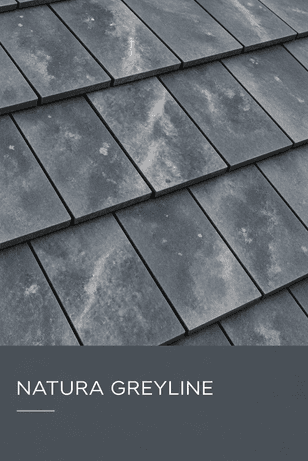

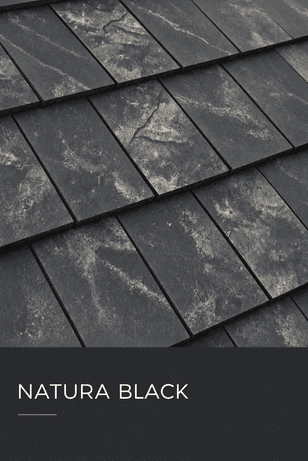

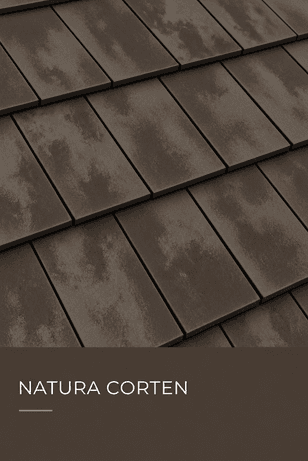

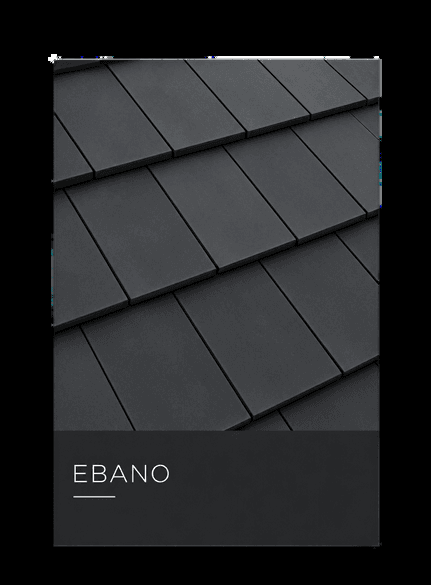

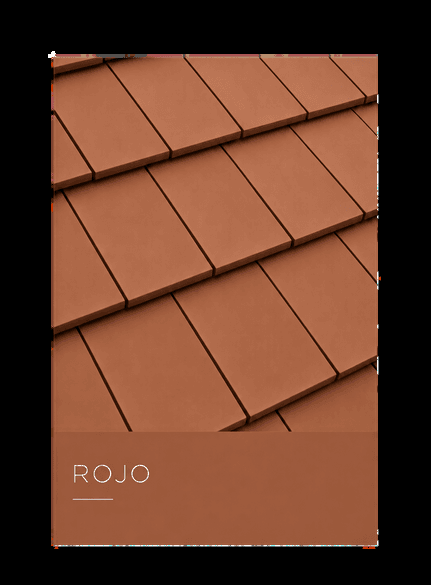

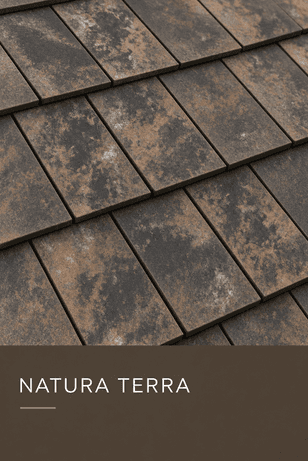

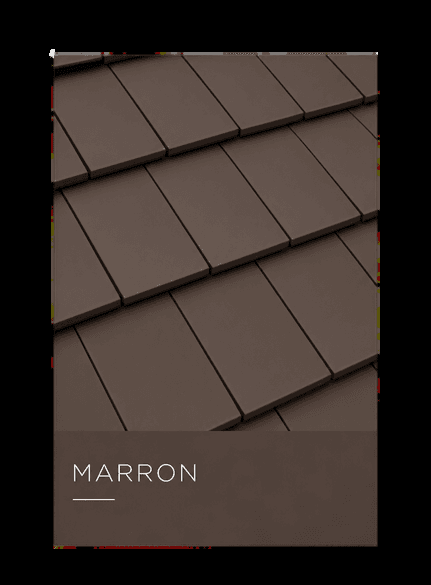

Color collection
Technical data
| Dimensions (L × W) | 17.95 in × 11.18 in |
|---|---|
| Tiles per sq ft | 11 |
| Unit weight | 9.0 lb |
| Batten spacing* | 12.60 – 14.76 in |
| Installation | Straight bond or staggered |
| System compatibility | Clima Pro T-320, Clima First and Clima Plus |
| Manufacturer | Almansa |
*Recommended batten spacing, approximate value. Minimum pitch: 25% with a batten spacing of 320 mm, 37% with 355 mm, and 47% with 375 mm. For other roof pitches, consult a BMI expert. In all cases a BMI waterproof, breathable membrane must be installed.
Standards and performance
| Standard | UNE EN 1304 |
|---|---|
| Waterproofing classification | UNE EN 539-1 |
| Frost resistance | ≥ 150 cycles UNE EN 539-2 |
| Flexural strength | ≥ 1,000 N UNE EN 538 |
AENORCENF
Features
- Mechanical strength
- Flatness
- Acid rain resistance
- Frost resistance
- UV radiation resistance
- Wind uplift
- Impermeability
- Fire resistance

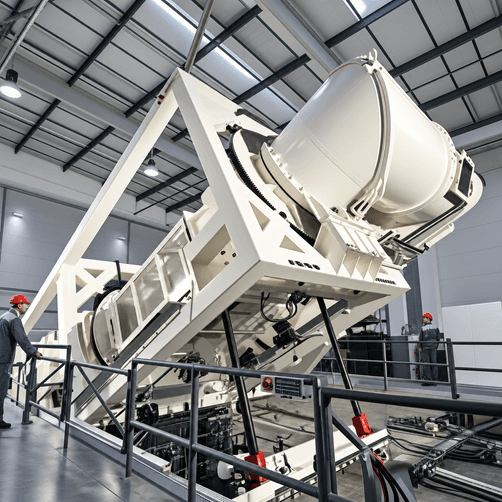

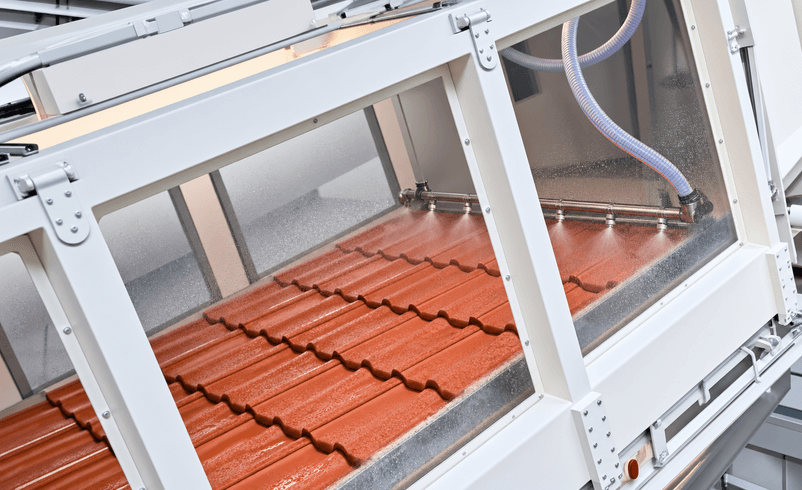

- Wind tunnel tested
Available accessories
- Flat Tile Low Curve
- 3-Way Flat Tile
- Flat Tile End Piece
- Flat Ridge Cover for Side Rake
- Left Rake Narrow Profile
- Double Interlocking Half-Tile
- Half Tile
- Right Rake Narrow Profile
- Angular Rake
- Ventilation Tile
- Chimney Support Tile
- Smoke Vent Cover
